Product Description

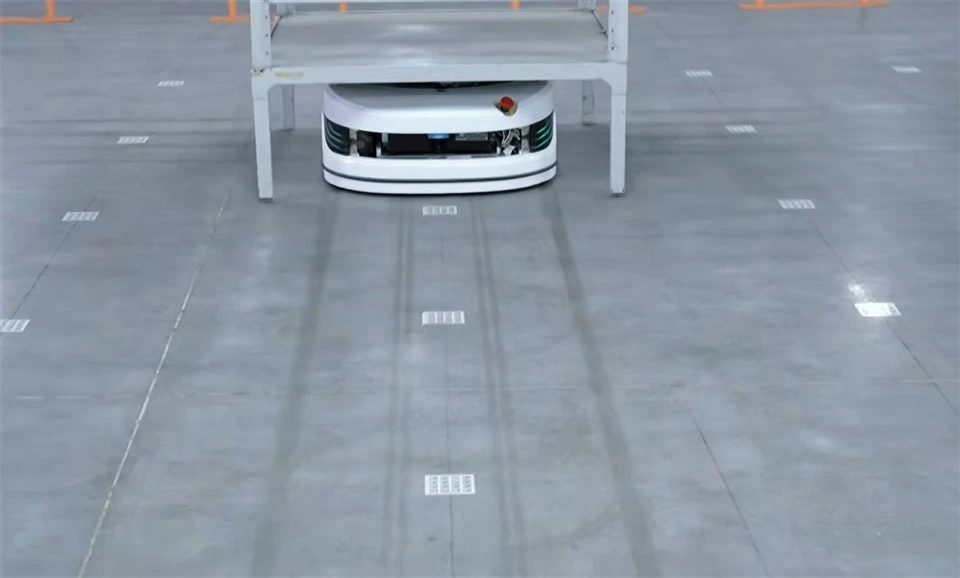

Code‑guided mobile pallet truck is QR‑code navigation AGV mobile pallet transfer robot. It reads ground‑laid two‑dimensional code markers to realize positioning and path navigation, completing automatic pallet transporting among silo stations, processing cells and buffer stations. It does not need laying heavy physical guide rails compared with RGV systems. Routes can be adjusted by updating ground QR‑code layout, bringing high layout flexibility for workshop logistics. It is widely applied for medium‑and‑small‑size smart‑factory intra‑workshop material circulation for auto parts, general hardware and 3C component production lines.
QR‑code AGV performance depends heavily on site ground conditions and marker layout. Drawing‑based manufacturing lets us evaluate your workshop layout and station distribution in advance. We provide marker‑placement guidelines tailored to your production stations, helping you avoid navigation errors caused by improper QR‑code installation after equipment arrival.
Technical Parameters
|
Parameter Item |
Specification |
|
Power Supply |
Battery (DC24V/48V) |
|
Navigation Method |
QR Code Recognition |
|
Positioning Accuracy |
±10mm |
|
Load Capacity |
Max500kg(Customizable) |
|
Walking Speed |
adjustable(Max1.5m/s) |
|
Battery Life |
8to12h(Auto‑rechargeable) |
|
Working Temperature |
-10°C to 45°C |
|
Control Mode |
Automatic Scheduling + Manual Control |
|
Communication Method |
WiFi / 4G / 5G |
Applications
Application 1
Flexible intra‑factory logistics for medium‑size automated workshops. Changes of production station layout only require adjusting QR‑code stickers instead of re‑laying rails, lowering workshop renovation costs for logistics system updates.
Application 2
Pallet transfer between multi‑layer silos and CNC production cells. Automatically shuttles full and empty pallets, reducing manual trolley transport workload for mixed‑variant batch production.
Application 3
Production lines with frequent workstation adjustment. Ideal for job‑shop‑style factories where equipment positions are regularly re‑arranged, as navigation routes can be modified quickly.
Customization
- Custom platform dimension, rated payload and pallet locating fixtures.
- Custom IO signal interlock for automatic docking with multi‑layer silo stations.
- Custom task scheduling logic for multi‑vehicle cooperative operation.
- Optional upper‑level system docking for MES/WMS connection.
Packaging & Transportation
Vehicle body wrapped with anti‑scratch plastic protective film. Control modules, sensors and batteries packed inside shock‑resistant cartons. Whole unit secured in export wooden crate. Pre‑shipment navigation and docking function test completed before shipment, suitable for sea‑land international freight.
FAQ
Q1. What ground condition is required for QR‑code navigation?
Answer. The floor needs to be flat, clean and wear‑resistant. QR‑code markers must be kept intact and free from oil, chip contamination to guarantee stable navigation.
Q2. Can multiple code‑guided AGVs work at the same time?
Answer. Multi‑vehicle operation is supported, but custom scheduling system development is required to prevent route conflicts.
Q3. Can it realize fully‑automatic docking with your multi‑layer silo series?
Answer. Yes, automatic docking can be achieved by customizing IO interlock logic.
