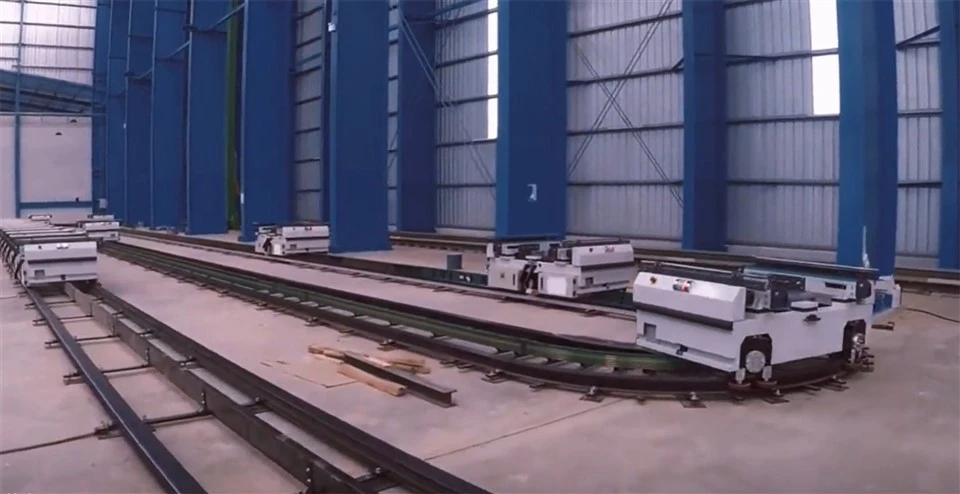

Circular Track RGV System

Circular track RGV system is a rail‑guided vehicle system running along closed‑loop circular or oval track layout. Multiple RGV shuttles can operate on one shared closed track, realizing multi‑vehicle circulating material distribution among all stations on the loop. It breaks the reciprocating travel limitation of linear RGV. Multi‑vehicle scheduling enables simultaneous pallet receiving and delivering for many stations inside large‑scale smart workshops, widely used for large‑scale CNC cluster production, new‑energy component intelligent production lines.

Circular‑track multi‑vehicle system involves complex multi‑car scheduling logic. We provide drawing‑based prototype simulation, simulating multi‑vehicle conflict‑avoidance and task‑scheduling logic before manufacturing, to avoid dead‑lock and task‑conflict risk on customer production site.

• Custom loop track perimeter, curve radius, station quantity and number of RGV vehicles.
• Custom single‑vehicle payload and platform pallet positioning fixture.
• Custom multi‑vehicle anti‑collision and task‑scheduling algorithm.
• Custom docking interlock for silos, processing equipment and optional MES system interface.

RGV vehicle units wrapped with anti‑scratch film. Electrical scheduling control cabinet packed inside heavy‑duty shock‑proof wooden box. Curved and straight rail segments packed in reinforced export wooden crates. Pre‑shipment multi‑vehicle circulating simulation test completed before shipment, fit for international sea‑land freight.
