Product Description

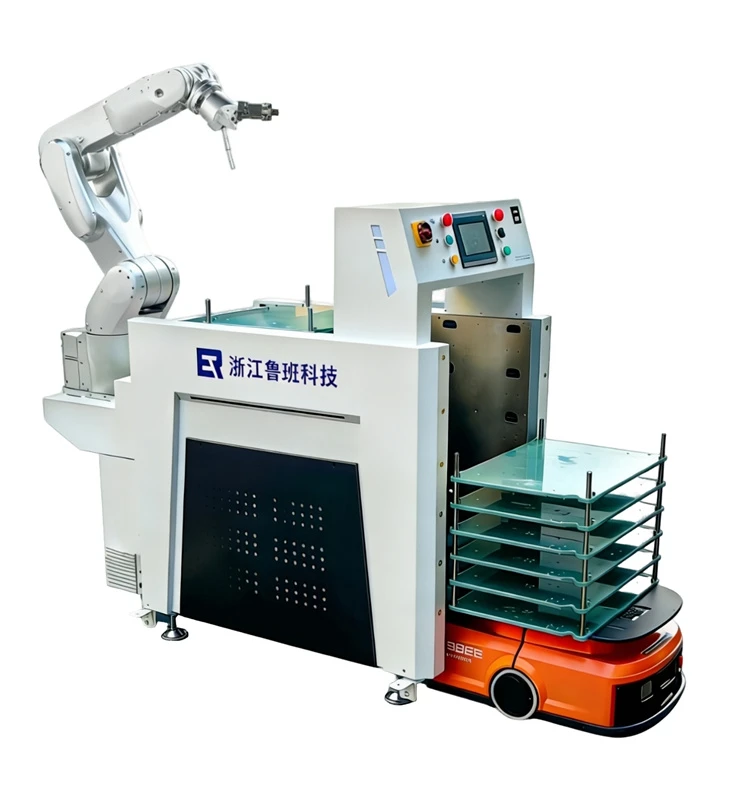

Value AGV with collaborative arm silo is cost‑optimized integrated feeding‑transfer station oriented for collaborative‑robot human‑mixed‑line scenarios. It adopts proven servo lifting structure and simplified human‑machine safety interlock logic. It supports multi‑layer workpiece storage, collaborative‑robot picking and basic AGV pallet automatic receiving‑delivering. It does not need fully‑closed safety fence, allowing nearby manual auxiliary operation. It suits 3C assembly, light‑duty sorting and other low‑to‑medium‑load flexible production projects for cost‑sensitive small‑and‑medium‑size factories.
For cost‑sensitive cobot‑AGV combined projects focusing on standard feeding‑transfer tasks, our standardized modular batch‑production delivers stable and consistent unit performance, and simplified operation logic lowers skill threshold of on‑site operators.
Technical Parameters
|
Parameter Item |
Specification |
|
Power Supply |
AC220V |
|
Total Power |
1.5kW |
|
Pallet Dimension |
520×440/600×500/700×550mm(Optional) |
|
Number of Layers |
5/6/7(Customizable) |
|
Inter-layer Spacing |
70/100/130/165/85mm(Customizable) |
|
Single Layer Load Capacity |
35kg(Customizable) |
|
Repeat Positioning Accuracy |
±0.25mm |
|
Layer Switching Time |
Approx. 25s |
|
Working Temperature |
-10°C to 45°C |
|
Robot Load Adaptation |
≤40kg |
|
Control Mode |
PLC + Touch Screen Fully Automatic |
|
Total Weight |
350/450/550kg |
|
Overall Dimensions |
By Model: 1250×820×1900to1520×1050×2100mm |
Applications
Application 1
Economical collaborative‑robot workstation with AGV logistics. Realizes core functions of cobot flexible picking and AGV pallet turnover without high‑end redundant modules, helping small factories deploy human‑robot mixed‑line flexible automation under budget constraints.
Application 2
Light‑weight small‑part assembly‑sorting production lines. Works with collaborative robot and standard IO‑type AGV for light‑duty component assembly, inspection and sorting tasks, allowing operators to approach for auxiliary refilling.
Application 3
Small‑batch multi‑variant flexible‑production auxiliary station. Manual‑adjustable fixtures support frequent product change‑overs, cooperating with AGV to finish flexible material distribution for mixed‑variant production.
Customization
- Custom pallet dimension, layer quantity and inter‑layer spacing.
- Custom mounting‑hole layout for mainstream lightweight collaborative robots.
- Custom basic IO interlock logic for customers' existing cobot and AGV.
- Custom simple lightweight locating fixtures for light‑weight small‑size workpieces.
Packaging & Transportation
Main equipment wrapped with anti‑scratch plastic membrane. Electric parts packed inside anti‑shock carton. Complete machine fixed in export wooden crate. Pre‑shipment function inspection finished, supports sea‑land international shipment.
FAQ
Q1. Does value AGV with collaborative arm silo include collaborative robot and AGV?
Answer. No. It provides mounting base and AGV docking station; collaborative robot and AGV hardware need separate procurement.
Q2. Can it work without AGV equipment?
Answer. Yes. It can run as economical collaborative‑robot multi‑layer silo; AGV automatic docking function will be invalid.
Q3. Is full safety fence mandatory for on‑site deployment?
Answer. Standard design supports human‑robot mixed‑line application without fully‑closed fence. It still requires on‑site safety risk assessment according to actual workshop environment.
