High-end AGV Multi-layer Storage System

High-end AGV Multi-layer Storage System

Details
Pallet sizes (selectable): 520 x 440 / 600 x 500 / 700 x 550 mm
Pallet layers: 5 / 6 / 7 (customizable)
Layer change time: approx. 25 s
Load per pallet: 35 kg (customizable)
Dimensions / weight: 1250 x 820 x 1400 to 1520 x 1050 x 1600 mm / 350-550 kg
Category
AGV Tending System

Send Inquiry
Description
Technical Parameters

 The Link Between AGVs and Machining

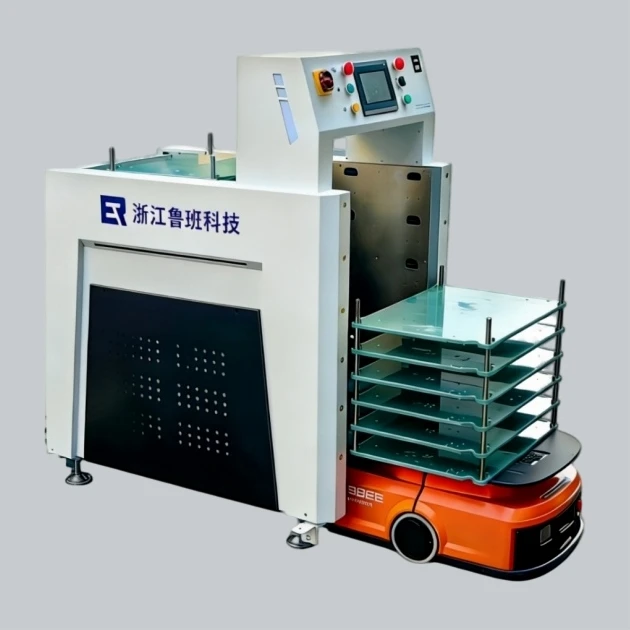

The High-end AGV multi-layer storage system receives material delivered by an AGV, stores it in layers, releases it on demand, and hands finished work back, closing the material loop without people. It targets fully unmanned smart factories, dark workshops, and CNC cluster lines, and works with QR-code, magnetic-strip, and laser-navigation AGVs. A vehicle-parts customer reassigned four material-handling workers and roughly doubled transfer efficiency, with annual labor savings above 400,000 RMB. Pallet sizes of 520 by 440, 600 by 500, or 700 by 550 mm and 5 to 7 layers are selectable at ordering.



 Docking Logic and Interlocks

The AGV must be fully docked before the magazine moves, and the magazine cannot run while the AGV enters, so the logic removes collision risk by design. Control is a Siemens PLC with a 7-inch touchscreen and a built-in AGV interaction protocol that connects to mainstream dispatch systems. The lift uses servo motors with precision gearboxes and repeats layer position within plus/minus 0.25 mm, with layer change around 25 seconds.



 Vision as Standard Equipment

The high-end version ships with a vision inspection system that reads workpiece placement, stacking, and misalignment, and confirms the AGV docking position. Anomalies trigger alarms and lockout before empty picks or bad handovers. The enclosure resists workshop dust, oil, and coolant mist, and the unit runs in the -10 to 45 degrees C range.



 Installation, Expansion, and Support

The unit is floor-standing on leveling feet, needs only a standard hardened floor, and requires no trenching or tracks; navigation is chosen between QR, magnetic, or laser according to the workshop. A plant without AGVs can start with forklift loading and upgrade to automatic docking later, with interfaces pre-provisioned. Zhejiang Luban Automation Technology Co., Ltd. holds core technology and patents in AGV magazine systems, stations a project team on site to commission the High-end AGV multi-layer storage system against AGV and MES systems, gives maintenance crews deep training, promises 48-hour on-site response for major issues, and keeps five spare-parts warehouses.



 Product Specifications

Parameter

Specification

Pallet sizes (selectable)

520 x 440 / 600 x 500 / 700 x 550 mm

Pallet layers

5 / 6 / 7 (customizable)

Layer change time

approx. 25 s

Load per pallet

35 kg (customizable)

Dimensions / weight

1250 x 820 x 1400 to 1520 x 1050 x 1600 mm / 350-550 kg
